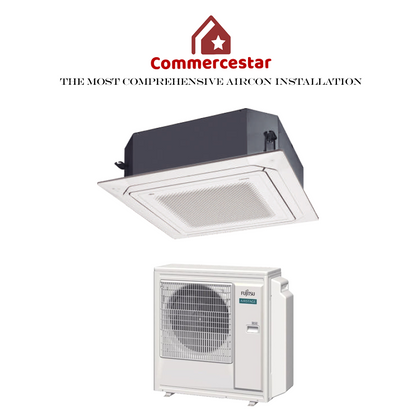

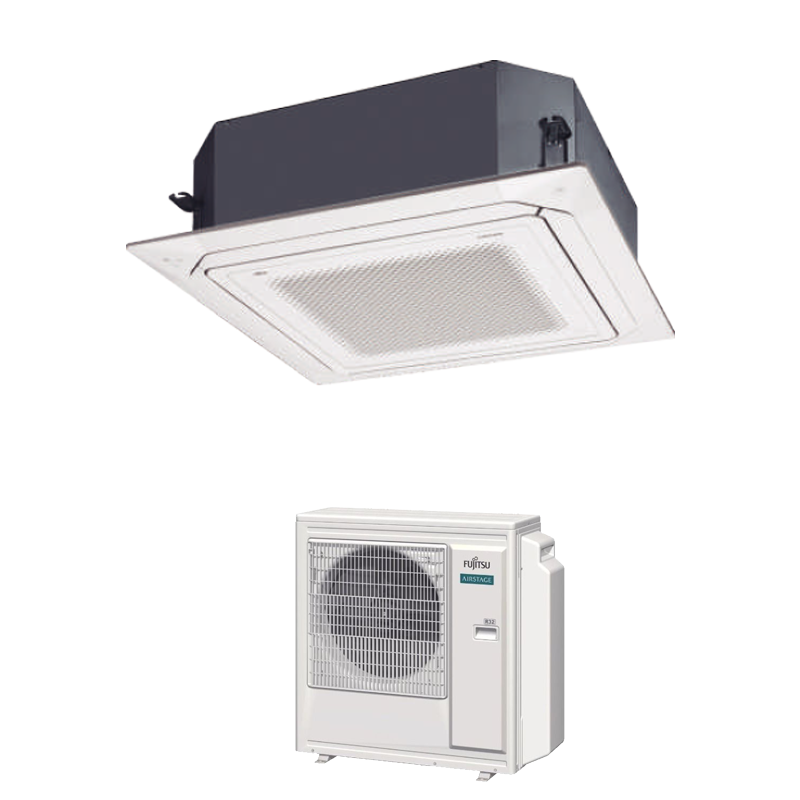

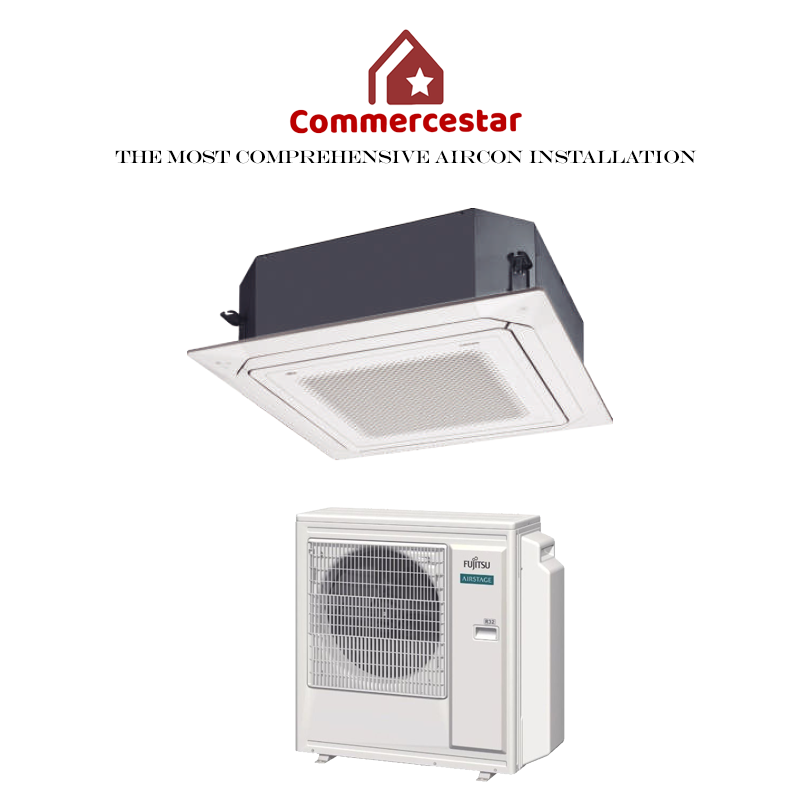

FUJITSU INVERTER R32 CEILING CASSETTE UNIT AIRCON INSTALLATION

FUJITSU INVERTER R32 CEILING CASSETTE UNIT AIRCON INSTALLATION

Regular price $3,080.00 SGD
Regular price $3,000.00 SGD Sale price $3,080.00 SGD
Sale Sold out
Shipping calculated at checkout.
Type
Combinations

FUJITSU INVERTER R32 CEILING CASSETTE UNIT AIRCON INSTALLATION

Model:

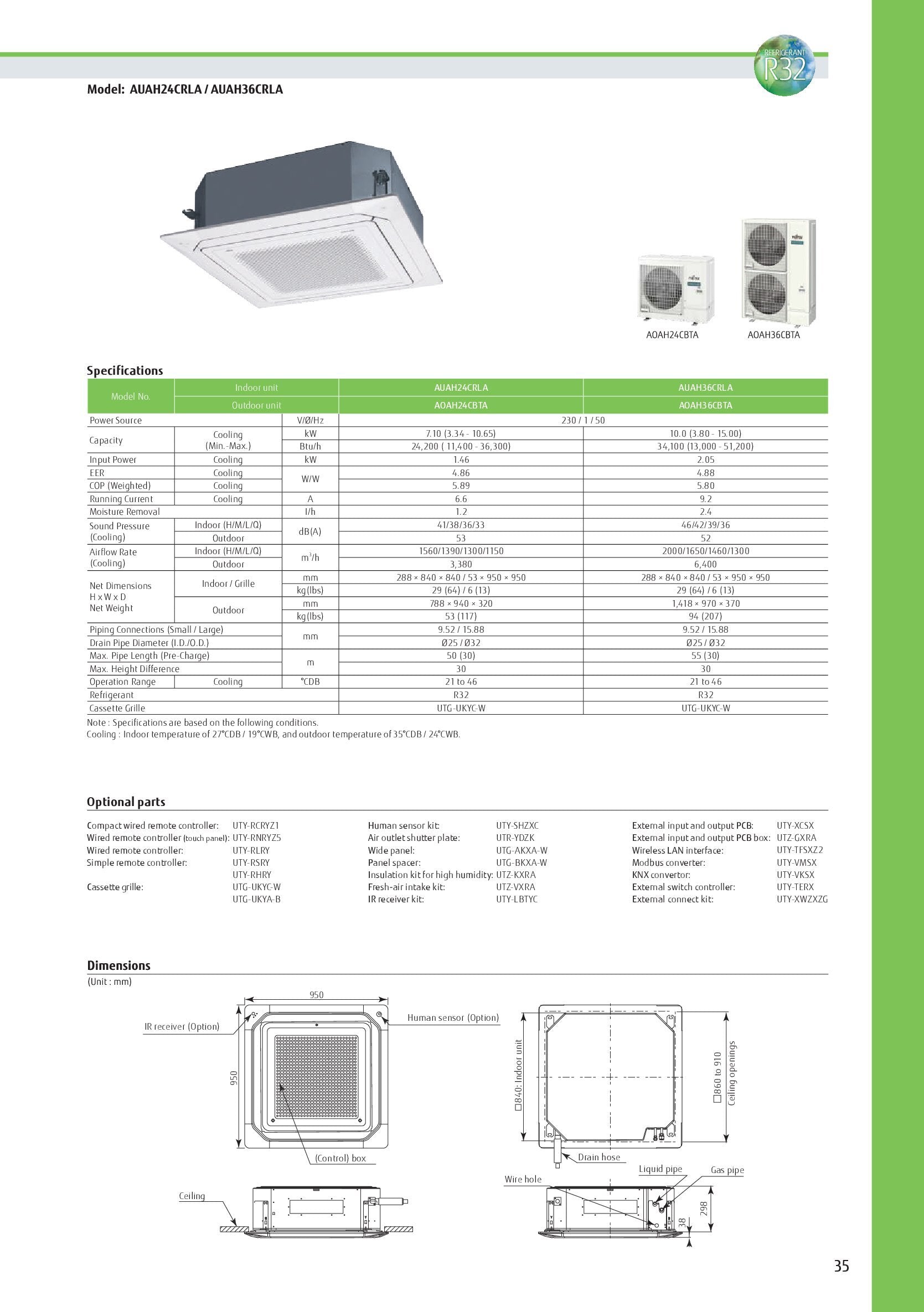

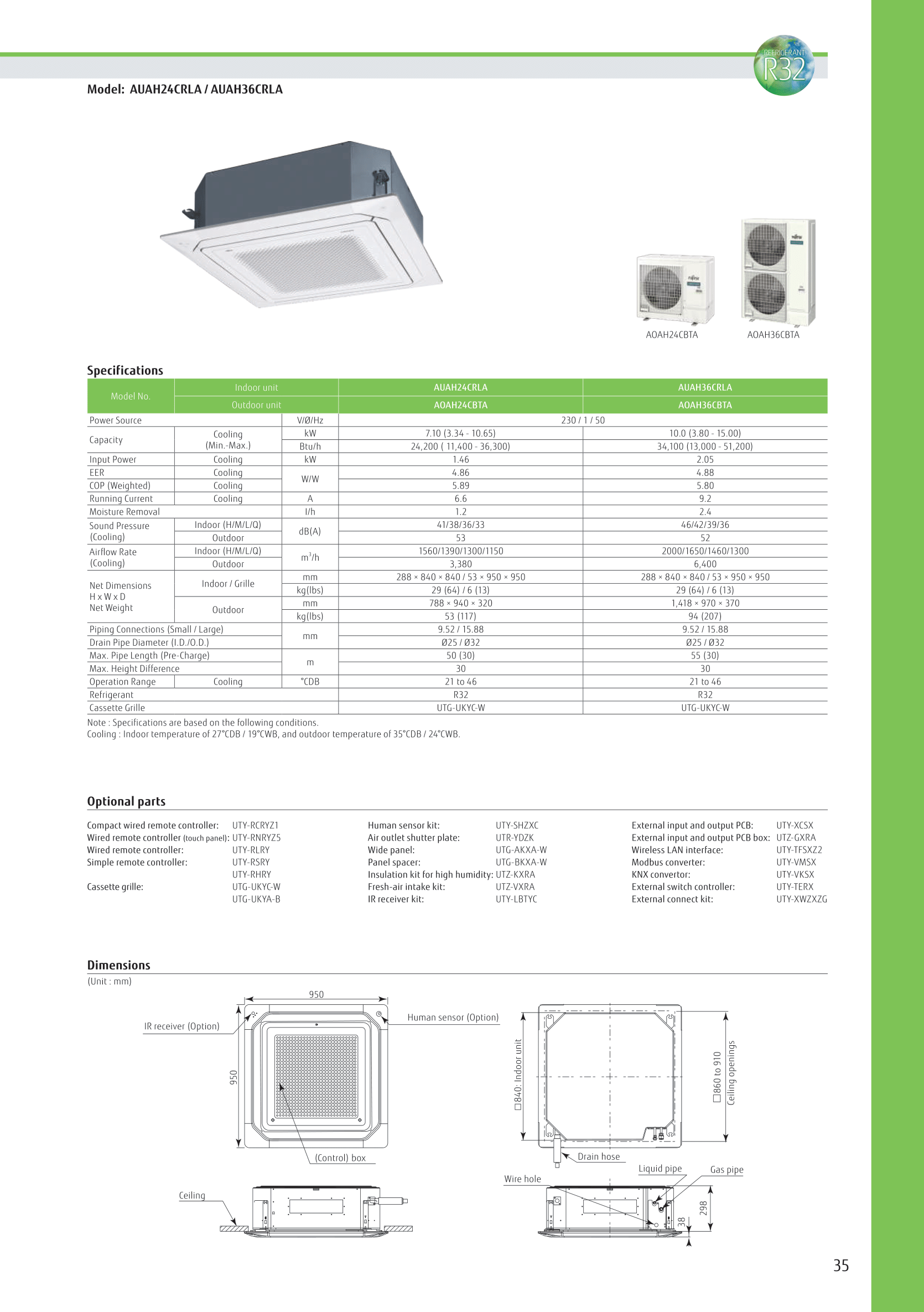

24000 BTU : AOAG24CBTA (CU) / AUAH24CRLA (FCU) - 5 TICKS

36000 BTU : AOAG36CBTA (CU) / AUAH36CRLA (FCU) - 5 TICKS


T&C FOR CASSETTE UNIT


Standard Installation Warranty:

- 5 years on compressor.

- 1 year on other spare parts.

- 1 year full installation workmanship.

- water leaking due to no servicing done; not covered.


Standard Installation: FREE Full Premium upgraded materials.

- 15m standard piping per FCU

- 1/2" K Flex PSB Certified Class O insulation (Origin from Italy)

- 22 SWG copper piping 0.71mm (Source 1 Brand - Origin from USA)

- Litaflex UPVC Trunking (Origin from Singapore)

- Sigma/keystone wire cables (Made in Singapore)

- Litaflex 20mm/25mm UPVC drain pipe (Origin from Singapore)

- Cable tray (Origin from Singapore)


Terms and Conditions:

-Our sales representative will contact you for installation dates within 1 working days.

-The Customer or Customer's Authorized Person must be present on-site during installation to confirm equipment locations. Any subsequent changes to equipment and piping locations will incur charges.

-Site survey inclusive prior to installation date.

-Material included in Standard Installation description.

-Stainless steel brackets and power points not included.

-Only for non-conceal standard piping installation with no obstacles or blockage by object such as wardrobe, - shelving’s, fitting, etc.

-No refunds allowed after installation.

-Dismantled units will be Commercestar’s property; return to owner will be chargeable at $200.00/set.

Additional applicable charges, if any:

- Pipe length for Commercial Properties capped at 15m, additional piping exceeded 15 metre is chargeable at $22.00/m

- False ceiling, patch-up, and painting.

- Power point (Optional)

- Single phase, up to 20A @ $350.00 up to 40m length

- Three phase, up to 32A @ $550.00 up to 40m length

- 2nd trip installation.

- Stainless steel water tray.

- SS304 bracket - Made in Singapore (Optional at $180.00).

- Additional charges may incur depending on job-site condition.

-Working height up to 3m; Any installation above 3 metre height requiring other means of access (scaffolding, scissor lift, MEWP) will be quoted separately.


Note:

- Any deviation from the specifications following an on-site assessment requires Commercestar's approval. Refunds, if applicable, will be limited to the deposit or amount paid, and no compensation for consequential damages will be entertained.

-Please contact our sales representative for other feasible variance/ combination not listed above.

-The Price Stated is Inclusive of Installation and disposal of existing units.

Product features

Installation Materials

  • 15m standard piping per FCU
  • 1/2" K Flex PSB Certified Class O insulation (Origin from Italy)
  • 22 SWG copper piping 0.71mm (Source 1 Brand - Origin from USA)
  • Litaflex UPVC Trunking (Origin from Singapore)
  • Sigma/ keystone wire cables (Made in Singapore)
  • Litaflex 16mm UPVC drain pipe (Origin from Singapore)

Terms & Conditions

  • Our sales representative will contact you for installation dates within 1 working days.
  • The Customer or Customer's Authorized Person must be present on-site during installation to confirm equipment locations. Any subsequent changes to equipment and piping locations will incur charges.
  • Site survey inclusive prior to installation date.
  • Material included in Standard Installation description.
  • Includes Dismantle and Disposal of Existing Units.
  • Stainless steel brackets and power points not included.
  • No refunds allowed after installation.
  • Dismantled units will be Commercestar’s property; return to owner will be chargeable at $50.00/FCU.

Additional applicable charges, if any:

  • Additional piping exceeded 15m per fan coil.
  • False ceiling, patch-up, and painting.
  • Power point.
  • 2nd trip installation.
  • Stainless steel water tray.
  • SS304 bracket - Made in Singapore (Optional).
  • Additional charges may incur depending on job-site condition.

Note:

  • Price stated are Inclusive of GST.
  • Any deviation from the specifications following an on-site assessment requires Commercestar's approval. Refunds, if applicable, will be limited to the deposit or amount paid, and no compensation for consequential damages will be entertained.
  • Please contact our sales representative for other feasible variance/ combination not listed above.

Warranty

Standard Installation Warranty:

  • 5 years on compressor.
  • 1 year on other spare parts.
  • 1 year full installation workmanship.

View full details

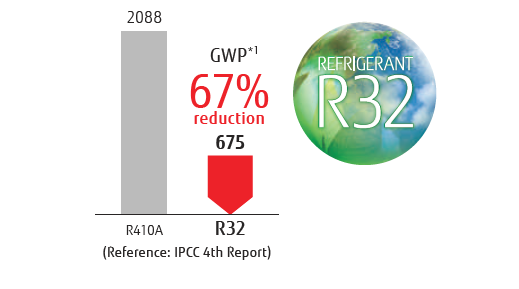

  • Adopting new R32 refrigerant

    R32 refrigerant is an environmentally friendly refrigerant with a significantly lower Global Warming Potential (GWP) than conventional refrigerant.

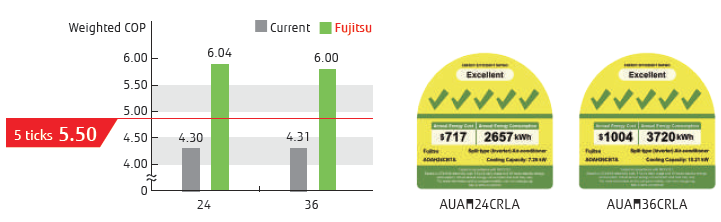

  • High energy saving

    New models have achieved the top energy efficiency level (5 ticks) by inverter technology.

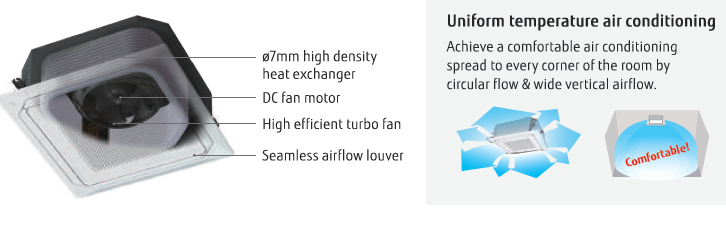

  • Uniform air distribution by the seamless air opening

    In new model, the gaps between each airflow openings are removed, which enables to distribute wider and uniform airflow to room.

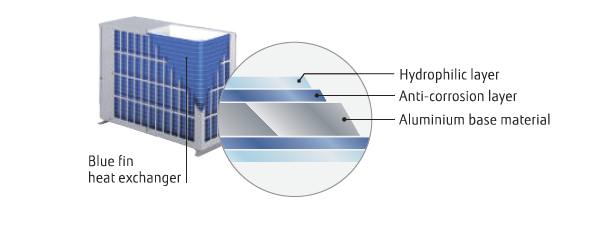

  • Blue fin heat exchanger

    Blue fin heat-exchanger is used for the outdoor units, which enables to enhance the corrosion-resistance performance.
